Tank-Eye Vapour Lock Valve
Tank head installation
Product:
Tank-Eye Vapour Lock Valve 2-inch
Material:
Corrosion resistant stainless steel AISI 316 with 2,7% Molybdenum content and PTFE Seats
Safety:
Double locked security cover +
additional lock handle
Gasket:
On request - product related
Max Operating Pressure:
6.0 bar
Fit for:
- DIN PN 10/16/25/40 - DN 50
- JIS 5K 50 & JIS 10K 50
- ANSI 150 lbs 2 Inch
Certified:
EN10204, 3.1 and API1598-10th
Additional information
Specially designed for hazardous chemicals. The main parts in contact with liquids are CF8M, 1.4436, and PTFE.
Butterwash hatch installation
Product:
Tank-Eye Vapour Lock Valve 2-inch
Material:
Corrosion resistant stainless steel AISI 316 with 2,7% Molybdenum content and PTFE Seats
Safety:
Double locked security cover +
additional lock handle
Gasket:
On request - product related
Max Operating Pressure:
6.0 bar
Fit for:
- DIN PN 10/16/25/40 - DN 50
- JIS 5K 50 & JIS 10K 50
- ANSI 150 lbs 2 Inch
Certified:
EN10204, 3.1 and API1598-10th
Additional information
Specially designed for hazardous chemicals. The main parts in contact with liquids are CF8M, 1.4436, and PTFE.

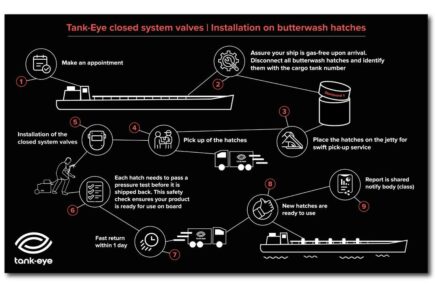

Butterwash hatch roadmap
In this roadmap we will explain the easy steps for installing the closed system valves and getting your barge future-ready in <8 hours.
