Bunker Drip Samplers

Bunker Drip Samplers
More details

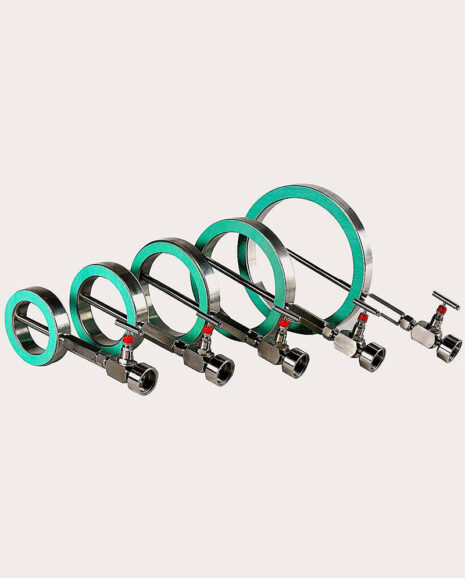

The Tank-Eye Bunker Drip Sampler is a premium, portable sampling flange designed to provide accurate and representative fuel oil samples during bunkering operations. Utilizing a proven continuous-drip mechanism, this system ensures full compliance with the strictest international maritime regulations.

With increasing scrutiny on fuel quality and emissions compliance in inland shipping and marine sectors, securing an untampered, representative sample is paramount. Installed directly at the vessel's bunker manifold, this mechanical sampler draws a continuous sample throughout the entire fuel delivery period.

Key Features & Benefits
  • Full Regulatory Compliance: Fully compliant with MARPOL Annex VI (Regulation 18.8.1) and SOLAS Chapter II-2 for generating the official, representative 'retained sample'.
  • Type Approved Reliability: Certified and Type Approved by leading classification societies, including Lloyd's Register.
  • Heavy-Duty Stainless Steel: Manufactured entirely from high-grade stainless steel to deliver ultimate durability and corrosion resistance in harsh maritime environments.
  • Versatile Flange Correlations: Available in a wide range of nominal pipe sizes (from 3" to 10") matching major international flange standards like JIS, BS, and ANSI.
  • Tamper-Evident Security: Features integrated sealing points to secure the sampling process and guarantee sample integrity against tampering or contamination.
Technical specifications
  • Sampling Method: Manual valve-setting continuous-drip sampler.
  • Nominal Pipe Sizes: Available from 75 mm (3") up to 250 mm (10").
  • Flange Standards: Universal fit for JIS B2210 (5K, 10K, 16K), BS 4504 (PN10, PN16), BS 10 (D, E, F), and ANSI B16.5 (150, 300).
  • Material Construction: High-quality Stainless Steel 316 sampler assembly, accompanied by high-visibility, chemical-resistant sealing gaskets.
